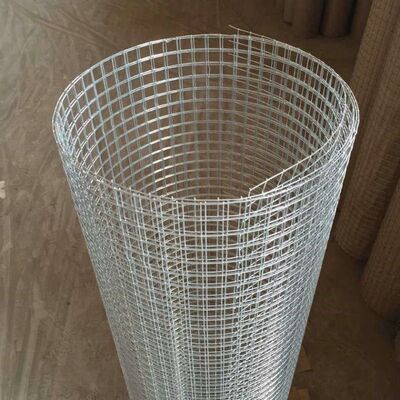

Strong Welded Mesh Fence with Uniform Mesh Size and Flat Surface Suitable for Heavy Duty Industrial and Agricultural Uses

1. Specifications

• Mesh Size: The standard mesh size ranges from 1.27mm×1.27mm (fine mesh) to 100mm×100mm (coarse mesh). Fine mesh is suitable for filtering, screening and precision protection, while coarse mesh is applicable to general protection, fencing and reinforcement scenarios. The mesh size can be flexibly adjusted according to actual requirements.
• Wire Diameter: The wire diameter ranges from 0.5mm to 4.0mm. Thin wires (0.5mm-1.2mm) are mainly used for fine filtering, decorative purposes and light-duty protection; thick wires (1.2mm-4.0mm) are designed for heavy-duty reinforcement, industrial protection and load-bearing scenarios.
• Mesh Width and Length: The standard width of the mesh panel is 1000mm-2000mm, and the standard length is 2000mm-6000mm. Customized width and length can be provided according to customer orders to adapt to specific installation and application requirements.

2. Material Options

• Low Carbon Steel Wire: As the most commonly used basic material, it has the advantages of high tensile strength, good ductility and cost-effectiveness. It is suitable for general construction reinforcement, ordinary fencing, agricultural breeding and other scenarios with no special corrosion resistance requirements.
• Stainless Steel Wire (304/316): It possesses excellent corrosion resistance, rust resistance and high-temperature resistance, and is not easily affected by moisture, chemicals, salt spray and other harsh environments. It is widely used in chemical plants, food processing facilities, coastal areas, medical equipment and other fields.
• Galvanized Steel Wire: Based on low carbon steel wire, it is treated with hot-dip galvanizing or electro-galvanizing, which significantly improves its corrosion resistance and extends its service life. It is commonly used in outdoor fencing, agricultural greenhouses, transportation facilities and other outdoor scenarios.
• PVC-Coated Steel Wire: On the basis of galvanized steel wire, a layer of PVC (polyvinyl chloride) is coated on the surface, which further enhances corrosion resistance and improves the aesthetic performance. It is suitable for environmental greening, landscape engineering, residential fencing and other scenarios with high appearance requirements.

3. Color Variations

• Galvanized Color: After hot-dip galvanizing or electro-galvanizing treatment, the surface presents a uniform and bright silver-gray, which is simple and practical, and has good corrosion resistance. It is the most commonly used color for welded wire mesh.
• PVC-Coated Color: The PVC coating can be customized into various colors, including green, black, gray, blue, brown, etc. Green is widely used in agricultural greenhouses and landscape engineering to blend with the surrounding natural environment; black and gray are suitable for industrial fencing and construction reinforcement.
• Natural Color: The original color of stainless steel wire is silver, which has a bright luster and excellent corrosion resistance, suitable for scenarios with high aesthetic and corrosion resistance requirements.

4. Application Scenarios

• Construction Field: Used for wall reinforcement, floor reinforcement, plastering mesh, exterior wall insulation mesh, etc. It can enhance the structural strength of buildings and prevent wall cracking.
• Agricultural Field: Applied to greenhouse shelves, animal breeding nets, crop protection nets, and orchard fencing. It is corrosion-resistant and durable, adapting to the outdoor agricultural environment.
• Industrial Field: Used for machine guards, equipment protection nets, filter screens, and separation nets. It can effectively protect equipment and operators, and realize functions such as filtration and separation.
• Security Field: Used as fencing for residential areas, factories, highways, railways, and airports, as well as anti-theft nets for doors and windows. It has strong anti-climbing and anti-damage performance, providing reliable security protection.
• Other Fields: Used for decorative crafts, furniture accessories, kitchen filters, and temporary protection in construction sites, with strong versatility.

5. Key Technical Parameters
